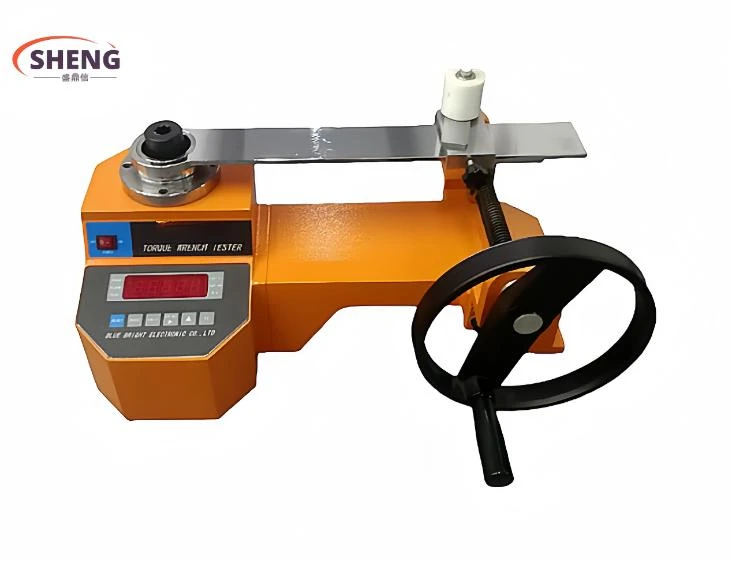

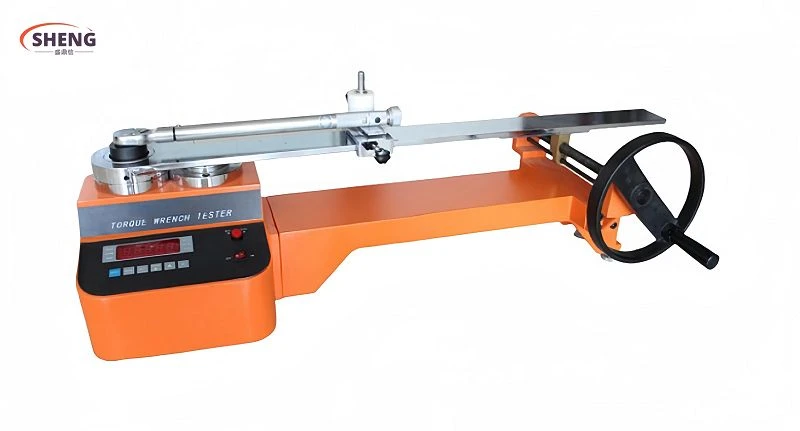

The Wrench Calibration Tester is a portable, high-precision calibrate tool designed specifically for calibrating and verifying various types of manual torque wrenches. Widely used in mechanical manufacturing, automotive maintenance, scientific research testing, and other industries.
Specifications
(1) Specifications of Single-Sensor Torque Wrench Calibrator
|
Model |
Torque range |
Weight |
Max effective arm[mm] |
External dimensions[mm] |
Driver |
||
|
L |
W |
H |
|||||
|
SDX-1000CT-01 |
0.2-2 |
25 |
|
280 |
90 |
170 |
6.3 |
|
SDX-1000CT-02 |
0.5-5 |
25 |
|
280 |
90 |
170 |
6.3 |
|
SDX-1000CT-03 |
1-10 |
25 |
600 |
800 |
440 |
340 |
6.3/10 |
|
SDX-1000CT-04 |
3-30 |
25 |
600 |
800 |
440 |
340 |
6.3/10 |
|
SDX-1000CT-05 |
5-50 |
25 |
600 |
800 |
440 |
340 |
6.3/10 |
|
SDX-1000CT-06 |
10-100 |
25 |
750 |
950 |
440 |
340 |
6.3/10/12.5 |
|
SDX-1000CT-07 |
20-200 |
25 |
750 |
950 |
440 |
340 |
6.3/10/12.5 |
|
SDX-1000CT-08 |
30-300 |
25 |
750 |
950 |
440 |
340 |
6.3/10/12.5 |
|
SDX-1000CT-09 |
50-500 |
25 |
750 |
950 |
440 |
340 |
10/12.5/20 |
|
SDX-1000CT-10 |
100-1000 |
60 |
1200 |
1400 |
600 |
350 |
12.5/20/25 |
|
SDX-1000CT-11 |
200-2000 |
65 |
1300 |
1600 |
800 |
550 |
20/25 |
|
SDX-1000CT-12 |
300-3000 |
90 |
1800 |
2000 |
1000 |
550 |
20/25 |
|
SDX-1000CT-13 |
500-5000 |
90 |
1800 |
2000 |
1000 |
550 |
20/25/38 |
|
SDX-1000CT-14 |
1000-10000 |
90 |
1800 |
2000 |
1000 |
550 |
25/38/51 |
|
Precision |
±1% |
||||||
|
Display mode |
5-digit LED display |
||||||
|
Power supply |
AC 220v-240v/50Hz |
||||||
(2) Specifications and parameters of dual-sensor torque wrench calibrator
|
Model |
Torque range |
Weight |
Max effective arm[mm] |
External dimensions[mm] |
Driver |
||
|
L |
W |
H |
|||||
|
SDX-2000CT-01 |
0.5-5,5-50 |
35 |
650 |
900 |
450 |
340 |
6.3/10/12.5 |
|
SDX-2000CT-02 |
1-10,10-100 |
35 |
650 |
900 |
450 |
340 |
6.3/10/12.5 |
|
SDX-2000CT-03 |
2-20,20-200 |
35 |
650 |
900 |
450 |
340 |
6.3/10/12.5 |
|
SDX-2000CT-04 |
3-30,30-300 |
35 |
650 |
900 |
450 |
340 |
6.3/10/12.5/20 |
|
SDX-2000CT-05 |
5-50,50-500 |
35 |
650 |
900 |
450 |
340 |
6.3/10/12.5/25 |
|
SDX-2000CT-06 |
10-100,100-1000 |
60 |
1400 |
1400 |
600 |
350 |
6.3/10/20/25 |
|
SDX-2000CT-07 |
20-200,200-2000 |
65 |
1600 |
1600 |
800 |
550 |
6.3/10/20/25 |
|
SDX-2000CT-08 |
30-300,300-3000 |
90 |
2000 |
2000 |
1000 |
550 |
6.3/10/20/25 |
|
SDX-2000CT-09 |
50-500,500-5000 |
90 |
2000 |
2000 |
1000 |
550 |
12.5/25/38 |
|
SDX-2000CT-10 |
100-1000,1000-10000 |
90 |
2000 |
2000 |
1000 |
550 |
12.5/25/38/51 |
|
Precision |
±1% |
||||||
|
Display mode |
5-digit LED display |
||||||
|
Power supply |
AC 220v-240v/50Hz |
||||||
Product Features
1. High Precision Measurement: The manual torque wrench calibrator boasts outstanding measurement accuracy, accurately capturing minute torque variations to ensure precise and reliable measurement results.
2. Portable Design: Designed to be lightweight and portable, the calibrator allows users to effortlessly carry it to the field for calibration and testing work, greatly enhancing work flexibility and efficiency.
3. Intuitive and User-Friendly Interface: Equipped with a clear and intuitive display screen and a simple-to-understand interface, the manual torque wrench calibrator enables users to easily set parameters, read data, and select functions. It's user-friendly and requires no complex training to operate.
In summary, the manual torque wrench calibrator is an indispensable measurement tool in various fields due to its high precision measurement, portable design, intuitive user interface, versatile functionality, excellent stability, and durability.
Application
The Wrench Calibration Tester finds extensive applications across various industries and sectors, including:
1. Industrial Manufacturing and Assembly: Used in industrial production lines, assembly workers utilize torque wrenches to ensure proper tightening of bolts and nuts. The manual torque wrench calibrator is employed for regular calibration of these torque wrenches to ensure torque accuracy and product quality stability during assembly processes.
2. Automotive Maintenance and Servicing: Automotive technicians need to ensure proper tightening of components such as wheels, engines, and suspensions. The manual torque wrench calibrator assists them in calibrating torque wrenches to meet the torque specifications of automobile manufacturers, ensuring driving safety.
3. Aerospace: In the aerospace sector, the tightening torque of bolts and nuts is crucial as it directly affects the structural integrity and safety of aircraft. The manual torque wrench calibrator is used to calibrate high-precision torque wrenches to ensure that each tightening operation meets strict aviation standards.
4. Energy Industry: Installation and maintenance of equipment in sectors like petroleum, natural gas, and wind power generation require precise torque control. The manual torque wrench calibrator is employed to ensure the accuracy of torque wrenches, thereby safeguarding the safe operation of energy equipment.
5. Railways and Transportation: Installation and maintenance of railway tracks, bridges, and signaling equipment require precise torque control. The manual torque wrench calibrator plays a key role in railway construction and maintenance, ensuring that fasteners meet standard torque requirements, thereby ensuring the stability and safety of railway systems.
6. Research and Testing: In scientific research and product development processes, precise torque control is critical for the reliability of experimental results. The manual torque wrench calibrator is used to calibrate torque wrenches in experimental equipment, ensuring the accuracy of experimental data.
7. Military and Defense: In the maintenance of military equipment and defense facilities, the safety of fasteners is directly related to combat effectiveness and personnel safety. The manual torque wrench calibrator is used to ensure the accuracy of torque wrenches used in the military field.
In conclusion, the manual torque wrench calibrator plays a crucial role in various fields, serving as a key tool to ensure accurate fastener torque, maintain equipment structural integrity, and ensure safety.
