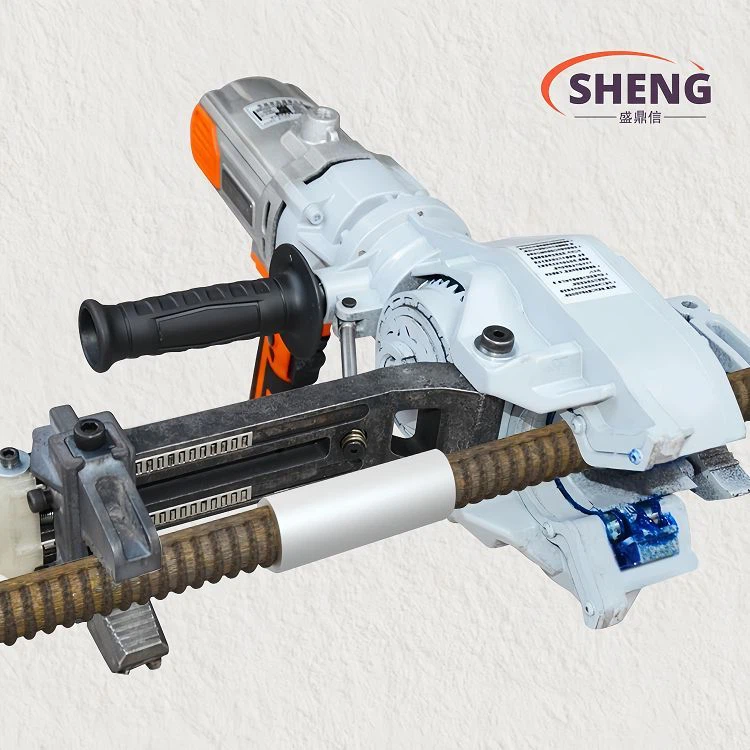

Rebar Connection Power Tools



Versatile Application: Suited for straight-threaded rebars ranging from 16 to 40mm in diameter. Applicable in both horizontal and vertical directions, including scenarios like rebar cages. Capable of twisting rebars and rotating sleeves. Widely utilized in construction sites such as bridges, tunnels, railway viaducts, nuclear power plants, and dams.



Adjustable Torque: Boasts a large torque and a stable rotational speed, providing ample power to drive rebars up to 40mm. Equipped with a built-in planetary reducer for stable operation without vibration, ensuring safe usage.



Dual-Slide Swing Arm Design: During threading, it effectively reduces the machine's wear and tear caused by reaction forces. The auxiliary claws ensure a firm grip on the rebars without slipping, significantly enhancing work efficiency.





The rebar connection power tools can be used in engineering construction and rebar pipe connection work in different scenarios and with different rebar specifications. The specific technical parameters are as follows.

Model	Power Type	Voltage	Rated Power	Rotating Speed	Max Torque	Applicable Scope
SDX-400RL	Power line	110V/230V	2600W	50r/min	400N.m	1.Rebar diameter 16-40mm; 2.Steel Coupler diameter 24-60mm; 3.Reinforcing cage coupler diameter 24-60mm.







Vertical Rebar Sleeve Connection (Positive and Negative Threads, Sleeve Threading, Rebar Cage Docking)



Mainly used for vertical sleeve threading in rebar cages and pile foundations.

Suitable for vertically connecting 16-40mm steel cages with a bar spacing of at least 7CM. Can manage a maximum 40-sized sleeve.

The sleeve hanger can be easily hung on the upper edge of the sleeve, eliminating the need for heavy lifting and facilitating operation.



Horizontal Steel Sleeve Connection (Positive and Negative Threads, Screwing Steel Bars)



Appropriate for horizontally screwing steel bars in places like foundation rafts and prefabricated steel shed parts.

Capable of handling a maximum 40-sized steel bar. The left side of the clamp is equipped with hard-wearing alloy teeth.



Horizontal Steel Sleeve Connection (Positive Threads, Screwing Sleeve Threading)



Used for horizontal sleeve threading in foundation rafts and prefabricated steel shed parts.

Suited for 16 - 40mm horizontal steel sleeve connections. Can screw a maximum 40-sized sleeve.



Vertical Steel Sleeve Connection (Positive and Negative Threads, Screwing Steel Bar Threading)



Ideal for vertical threading of column bars and wall bars.

Applicable for vertical 16 - 40mm steel sleeve connections. Can handle a maximum 40-sized steel bar.

The column bar clamping claws firmly grip the steel bar. No manual lifting is required as the holding force is strong and the wrench won't slip.







Q1: Does this wrench require a special power source?

A1:No, it supports standard AC 110-230V power, making it suitable for use in most regions worldwide.



Q2: Can the jaws be adjusted?

A2:Yes, the claws can be adjusted within a certain range to meet different rebar size requirements.



Q3: What is the service life of this electric rebar torque wrench?

A3: The wrench is made of high-quality materials, such as high-speed steel quenching casting, alloy teeth, etc., which is sturdy and durable. At the same time, the swing arm double slide design can alleviate the loss of the machine by the reaction force, and the built-in planetary reducer ensures smooth operation. As long as it is used and maintained correctly, its service life is long.



Q4: How to choose the appropriate configuration in different application scenarios?

A4: If it is a scenario such as vertical rebar cage docking, you can choose the rebar sleeve claw configuration; if it is a scenario such as foundation raft slabs and rebar shed prefabricated parts in the horizontal direction, choose the horizontal rebar claw configuration; if it is a scenario such as horizontal sleeve threading, choose the rebar sleeve configuration; if it is a scenario such as column rebar, wall rebar, etc., choose the vertical rebar claw configuration.



Q5: Does it require special skills or training to operate this wrench?

A5: It is relatively easy to operate this wrench, and no special professional skills training is required. Through the video operation demonstration provided by our company, you can have a good understanding of the function, operation method and safety precautions of the wrench.



Q6: What are the key points for the maintenance of this wrench?

A6: Regularly check the various parts of the wrench for damage or wear, especially the claws and alloy teeth. Keep the wrench clean to prevent dust and debris from entering the interior. After use, it should be properly stored to avoid collision and humid environment.
