INTRODUCTION
The plug-in electric rebar connection torque wrench is our innovative product to meet the high demands of connecting rebar in modern construction and industry. It is equipped with a high-performance motor and a sophisticated torque control system to ensure accurate and consistent torque forces during the rebar connection process. At the same time, its plug-and-play design makes the operation more convenient , greatly improves the work efficiency.

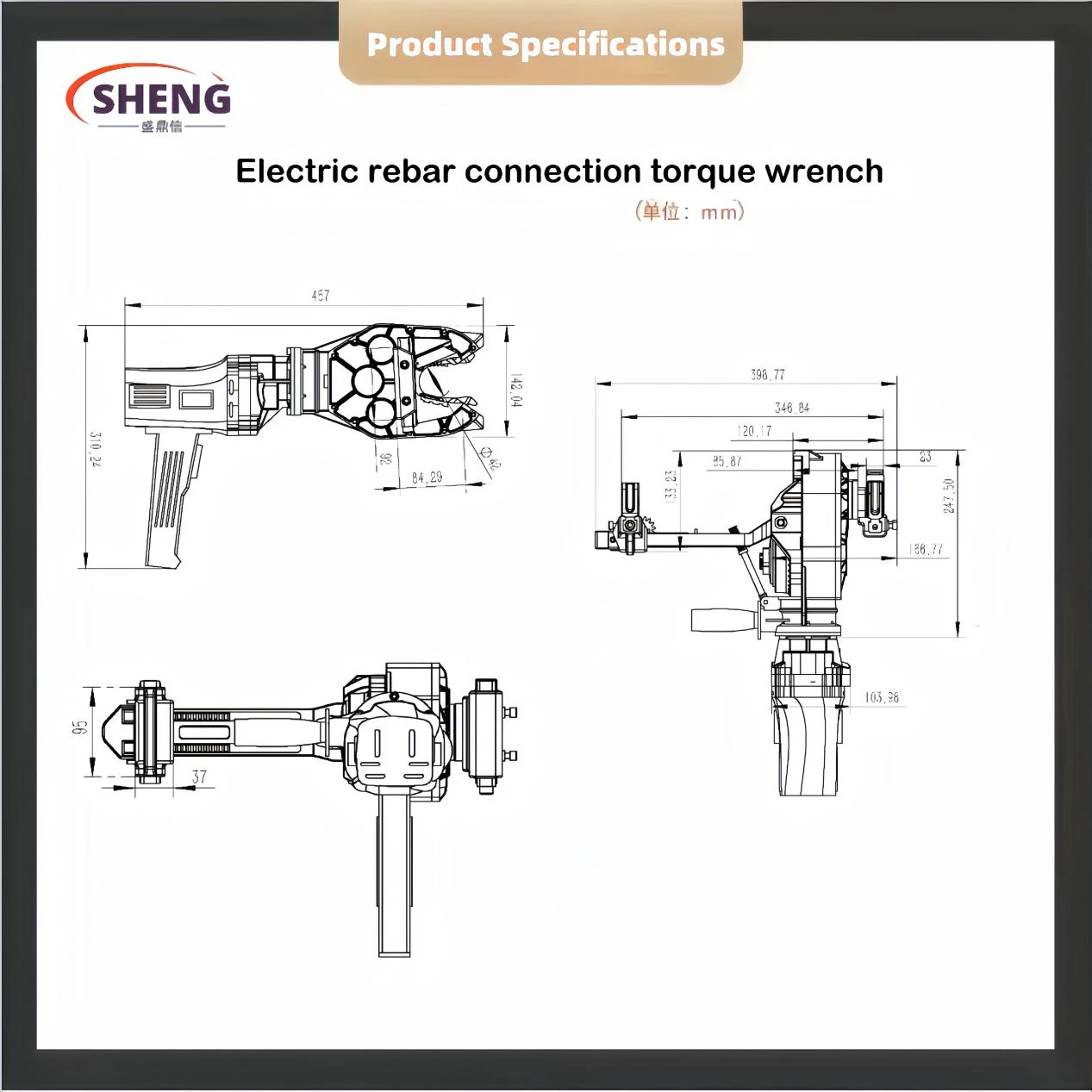

Product Parameter/Specification
Rebar diameter size ：16-40mm
Power consumption：2600W
Voltage : AC 110/230V
Max torque：400N.M
Ro speed ：0-50r/min
Gross weight：20.6kg
|
Model |
Type |
Claws Type |
Voltage |
Frequency |
Rated Power |
Rotating Speed |
Torque |
Weight |
Rebar Diameter |
|
SDX-400RL |
Power line |
Horizontal Rebar claws Column rebar claws Steel coupler claws Reinforcing cage |
110V/230V |
50hz~60hz |
2600W |
50r/min |
400N.m |
20.6 |
1.Rebar diameter 16-40mm 2.Steel Coupler diameter 24-60mm 3.Reinforcing cage coupler diameter 24-60mm |
Product Features
High-Power Motor:
Equipped with a 2600W motor, it provides strong power and stable performance for long periods of operation. The carbon brush can be replaced quickly and easily.
Stepless Variable Speed and Reversible Rotation:
Allows control of the speed according to the actual application needs, with a one-click switch for forward and reverse rotation.

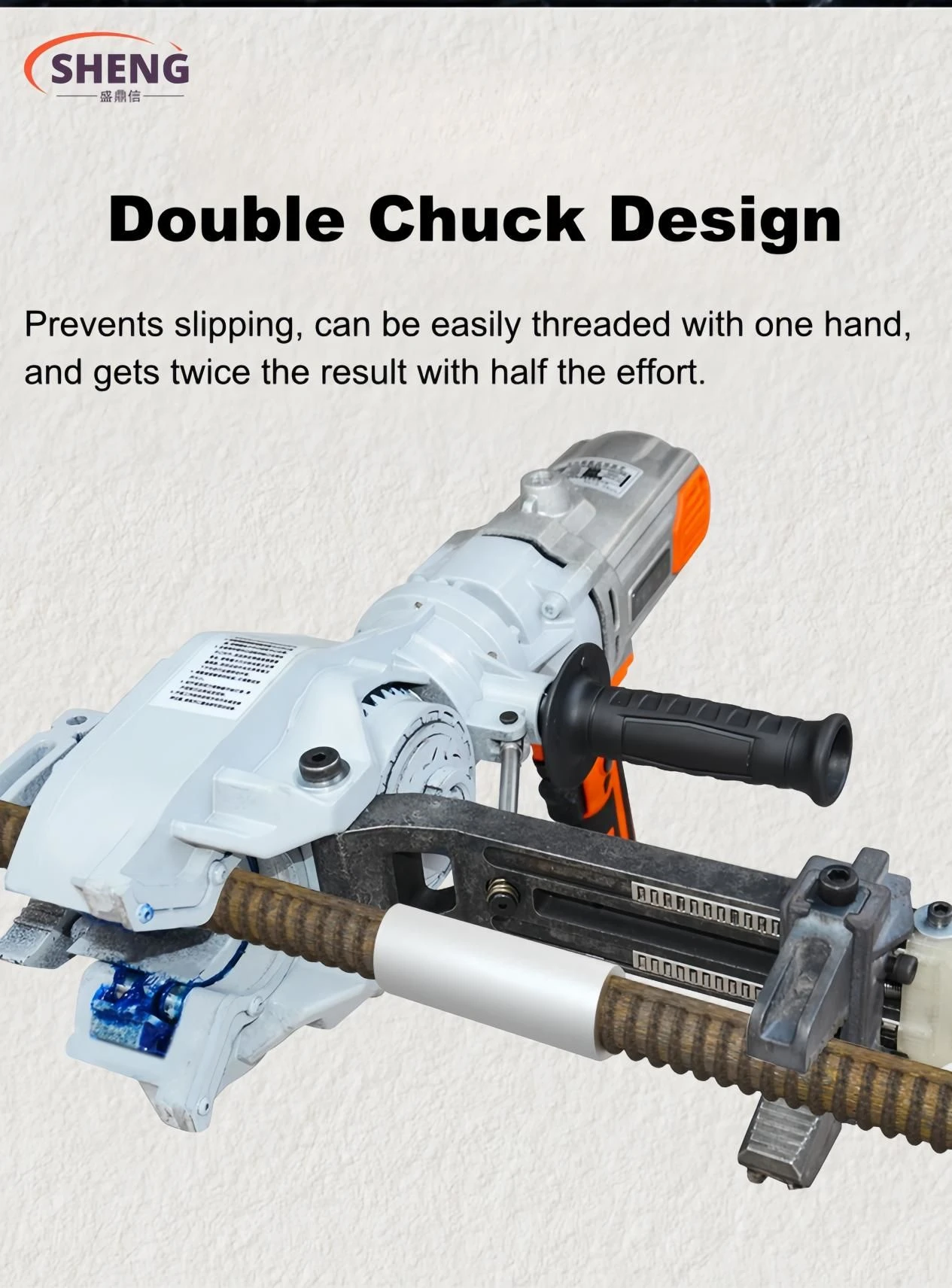

Dual Slide Rail Arm System:
Counteracts reverse torque, making it easy and effortless to operate with one hand. The auxiliary clamping claws grip the rebar securely without slipping, effectively increasing work efficiency.
Adjustable claw Opening Size:
The claw opening size can be adjusted from 16-40mm. Made of quenched alloy, the claws are highly durable and wear-resistant. They can grip threaded rebar, sockets, couplers, and various pipes, with interchangeable claw to suit different needs.
Adjustable Torque:
The torque can be adjusted from 0-400N.m. The torque nut increases torque when turned clockwise and decreases torque when turned counterclockwise, meeting the torque requirements of 0-400N.m in rebar engineering.
.
Product Application
The Rebar Connection Electric Wrench is ideal for a wide range of applications in the construction industry, including:
High-Rise Buildings: Ensures secure connections for reinforced concrete structures.
Bridges and Tunnels: Provides reliable coupling for heavy-duty rebar used in infrastructure projects.
Industrial Facilities: Suitable for reinforcing large-scale industrial constructions.
Residential Buildings: Speeds up rebar work in residential construction, improving overall efficiency.
Road Construction: Facilitates the reinforcement of concrete roads and pavements.

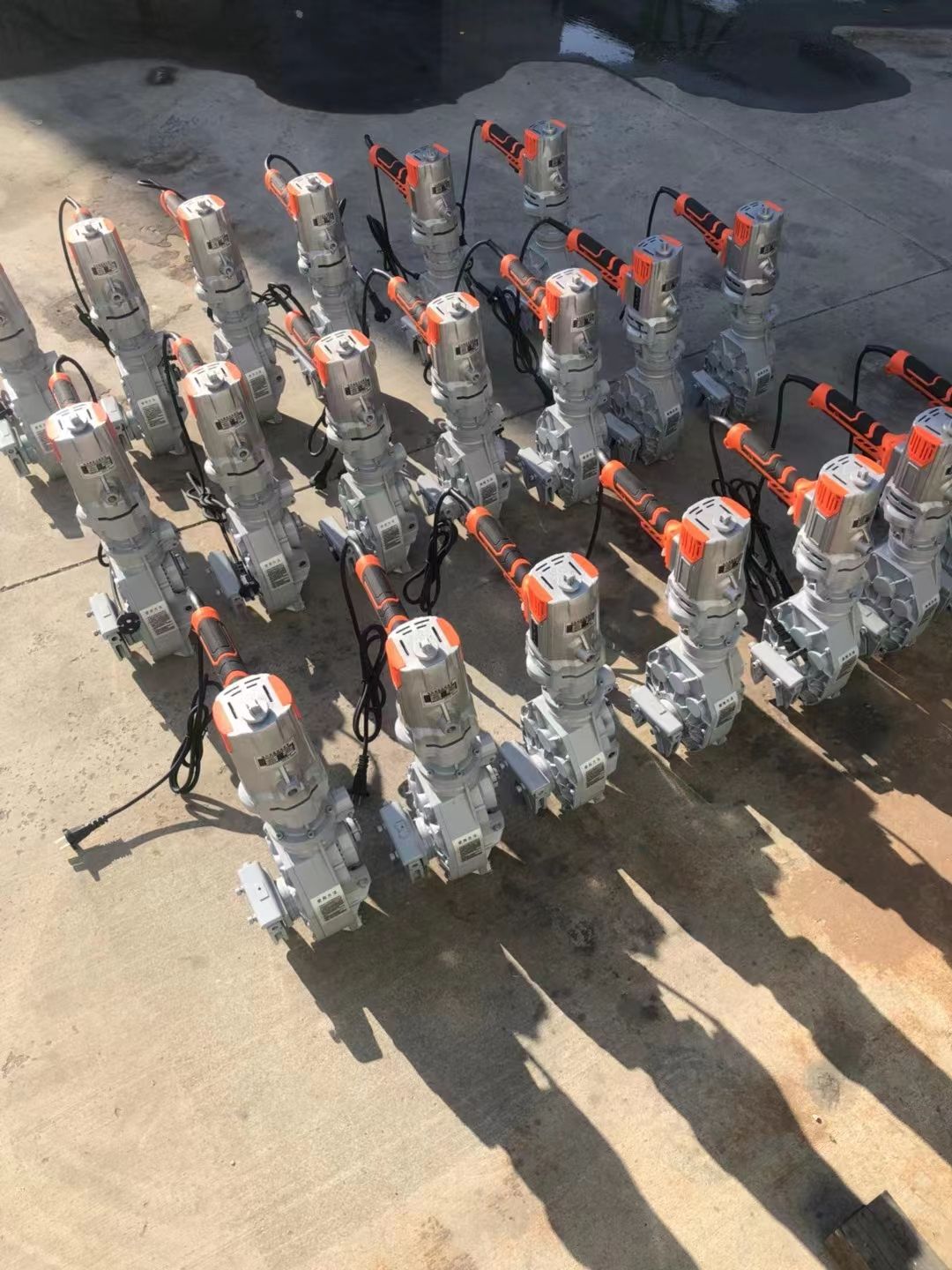

Delivery : Usually we have enough stock that could be shipped within 3~5 work days after receiving payment; if not have stock, we need about 10~15 work days for producing.
Payment : We only accept 100% bank payment before delivery

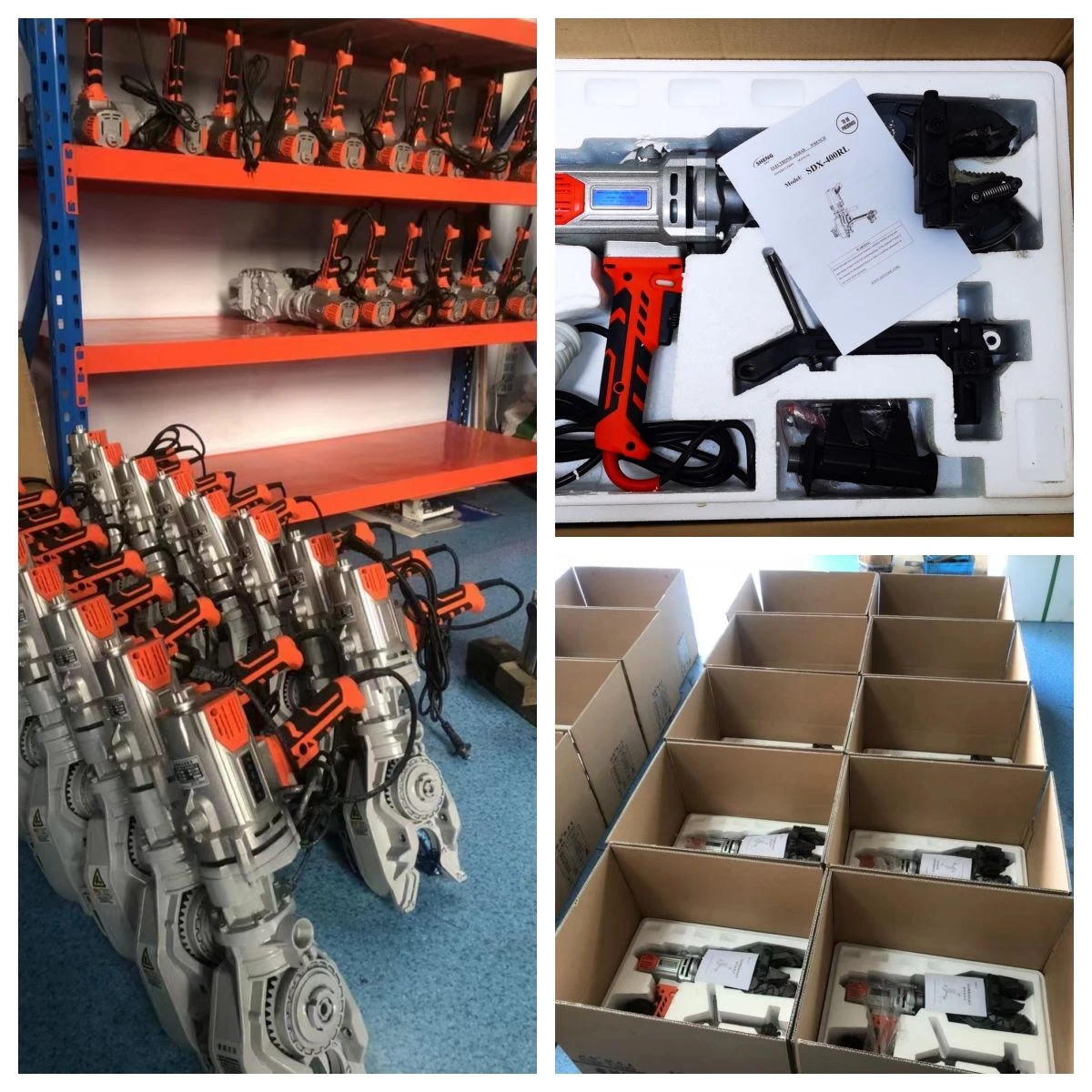

Package : Plastic box+ Carton Box
Shipping Way : Usually we ship the machine by DHL, UPS or Fedex
