Product Introduction

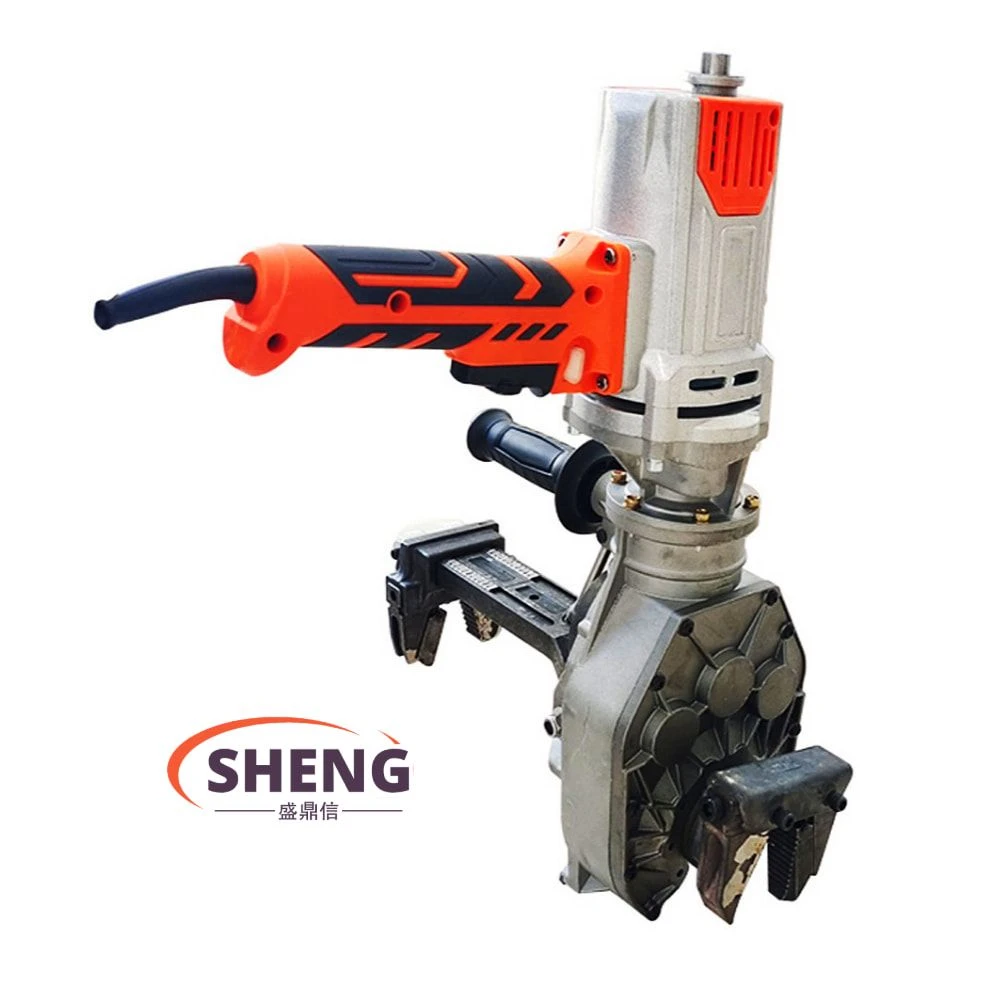

Introducing our innovative solution for rebar connections: Electric pipe torque connection wrench .
01 Scope of application
Straight threaded steel bars with a diameter of 16-40mm
Threading steel bars and sleeves in horizontal and vertical directions, steel cages, etc.
Can screw steel bars or sleeves
Construction sites such as bridges, tunnels, railway viaducts, nuclear power plants, dams, etc.
02 400N.M torque can be adjusted at will
With large torque and stable speed, it can drive steel bars of 40mm and below to rotate, with sufficient power
Built-in planetary reducer, stable speed, no shaking, safe operation
03 Swing arm double slide design
When threading steel bars, it can easily alleviate the loss of the machine caused by the reaction force
With auxiliary claws, the steel bars can be clamped without slipping, which effectively improves work efficiency
04 2600w pure copper motor
The pure copper motor has stable performance, can run for a long time, and is not easy to damage
Coupling plug, stable power connection, long-term work without worrying about insufficient power

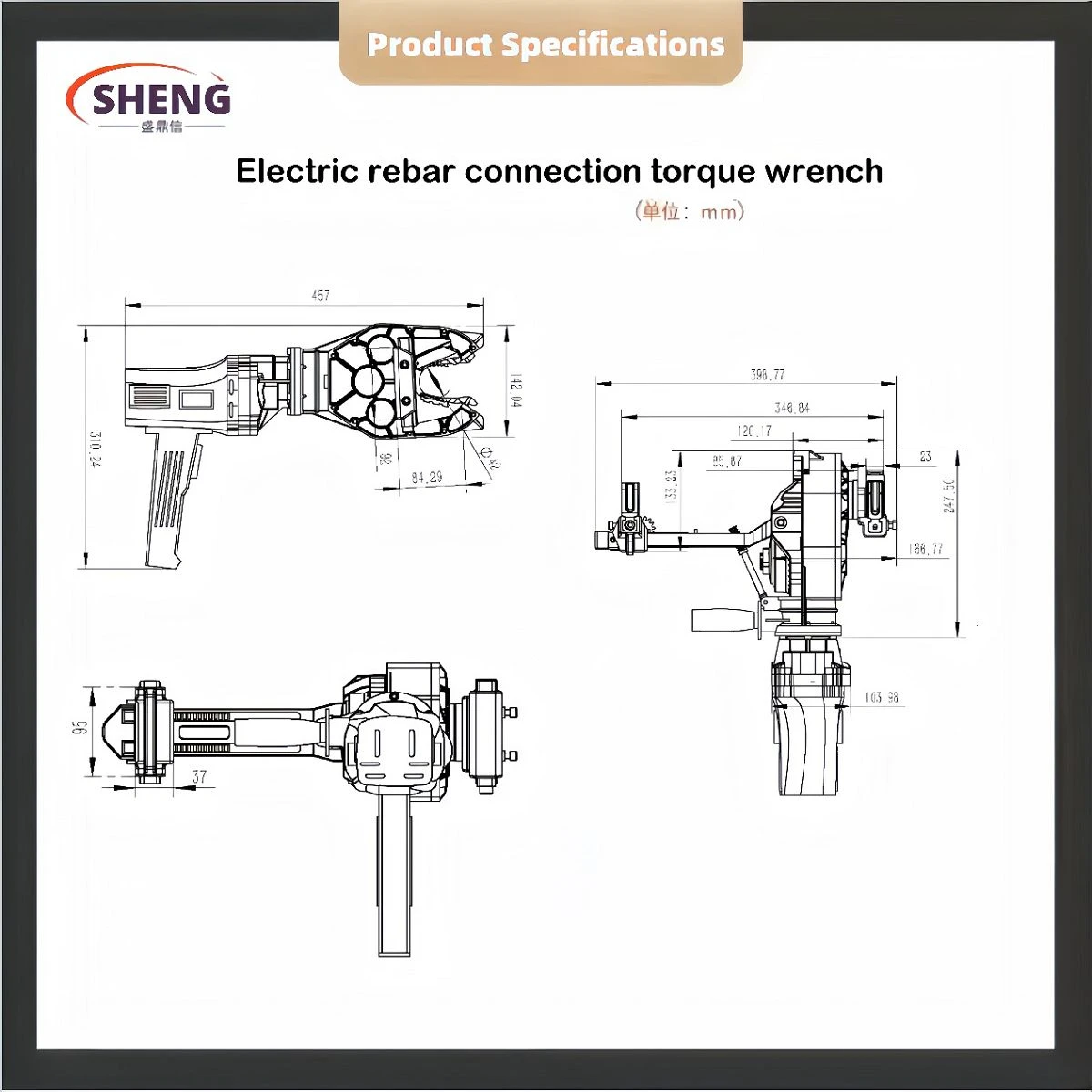

Product Parameter
Rebar diameter size ：16-40mm
Power consumption：2600W
Voltage : AC 110/230V
Max torque：400N.M
Ro speed ：0-50r/min
Gross weight：20.6kg
|
Model |
Type |
Claws Type |
Voltage |
Frequency |
Rated Power |
Rotating Speed |
Torque |
Weight |
Rebar Diameter |
|
SDX-400RL |
Power line |
Horizontal Rebar claws Column rebar claws Steel coupler claws Reinforcing cage |
110V/230V |
50hz~60hz |
2600W |
50r/min |
400N.m |
20.6 |
1.Rebar diameter 16-40mm 2.Steel Coupler diameter 24-60mm 3.Reinforcing cage coupler diameter 24-60mm |
Product Features
1. High Torque Performance: Equipped with a powerful motor, our gun delivers high torque output, ensuring secure and reliable rebar coupler connections.
2. Adjustable Settings:With adjustable torque and speed settings, operators have precise control over the tightening process, enhancing efficiency and accuracy.
3. User-Friendly Design:Ergonomic handle and intuitive controls provide comfort and ease of operation, reducing operator fatigue during extended use.
4. Durable Construction: Built to withstand rigorous construction environments, our gun features a robust housing and components for long-lasting durability.
